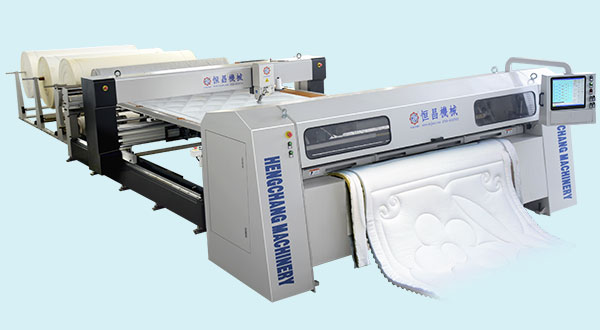

HC-S3000 Single Needle Quilting Machine


quilting machine

SPECIAL FUNCTION:

Advanced qualified lock stitch sewing head, rotating speed can be up to 3000RPM.
Diagnostic testing for thread broken and pattern compensation.
Adjustable presser plate in different thickness.
Memories restart all patterns after stop quilting.
360° T&J and simple pattern, more than 200 patterns.
Capable pattern-designing software can adopt various quilting file and quilting system.
Daily output counter and total output counter.
Needle arrangement and pattern showing.
Automatic needle lift, pneumatic thread cutting and thread break detector.
Pattern compensation and correction.
Servo driver motor operations.
Automatic material feeding and cutting device.


Technical Specification:
Quilt width ≤2400mm
Quilt thickness ≤80mm
Needle size DP ×17 21#/22#/23#
Stitch (2-6)mm
Rotating speed of needle 2000RPM
Production speed 40-120 m/h
Production speed (40-120)m/h
Power 8.8kw
Voltage

3-Phase,380V,50Hz/

3-Phase,220V,50Hz

Gross weight 4500Kg
Size(L × W × H) 10000 × 4500 × 1600mm

Feature Icon
quilting machines
Imported large bobbin Imported sewing head Panasonic servo control New CPU control system
quilt pattern Quilt Pattern quilt pattern quilt pattern


Applications:

Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and etc.
