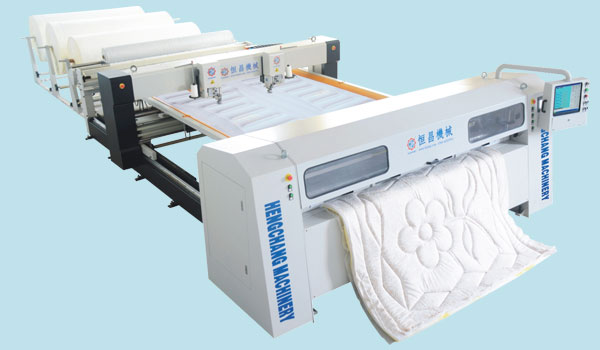

HC-D3000 High Speed Double Heads Quilting Machine


quilting machine

SPECIAL FUNCTION:

Advantage quality lock stitch sewing head, rotating speed can up to 3000RPM.
Diagnostic testing for thread broken and pattern compensation.
Adjustable presser plate in different thickness.
Memories restart all patterns after stop quilting.
360° T&J and simple pattern, more than 200 patterns.
Capable pattern-designing software can adopt various quilting file and quilting system.
Daily output counter and total output counter.
Needle arrangement and pattern showing.
Automatic needle lift, air thread cutting and thread brake detector.
Pattern compensation and correction.
Servo Driver motor operations.
Automatic material feeding and cutting device.
Special left sewing head design, patented product.


Quilting Machine Technical Specification:
Size (length*width*height) 10000X4500X160(mm)
Weight 5000kg
Quilt width 2400mm
Rotation speed 3000RPM
Production speed 40-160m/h
Needle type DP x 17   21#/22#/23#
Voltage 3-Phase,380V,50Hz
3-Phase,220V,60Hz
Stitch size 2-6 mm
Power 10.5 KW
Quilting thickness ≤80mm


Feature Icon:
quilting machines
New generation control system A high powered fast speed controlled servo motor New hopper balance system Pneumatic system for pressing foams

Applications:

Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.
