SPECIAL FUNCTION:
·New Fabric loading design. Easy loading material.
·New body design.
·Thread brake detector.
·Using air cylinder for thread cutting tail length.
·Needle rod design is reliable and stable.
·Improved quilting software control system allows more precise and stable quilting operations.
·Error problem detection system.
·CAD Pattern drawing pattern system allows you to create your own designs.
·Machine comes with 100-300 design patterns.
Technical Specification:
| Size (length*width*height) |
4900X1220X2000(mm) |
| Weight |
4000kg |
| Quilt width |
2450mm |
| Rotation speed |
600-950RPM |
| Production speed |
65-180 m/h |
| Needle type |
160/23 180/24 |
| Needle arrangement |
(50.8,76.2,127)
(76.2,76.2,152.4) |
| Max. horizontal movement |
450mm |
| Needle space |
25.4mm |
| Power supply |
380V/220V 50Hz/60Hz |
| Stitch size |
2-7 mm |
| Power |
5 KW |
| Quilting thickness |
≤60mm |
Applications:
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.

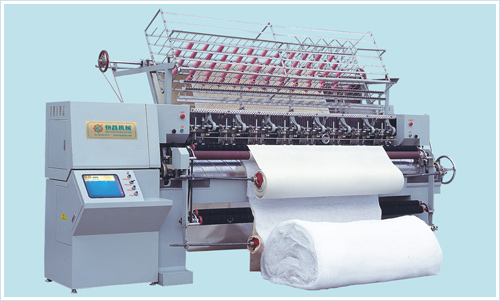

Products:

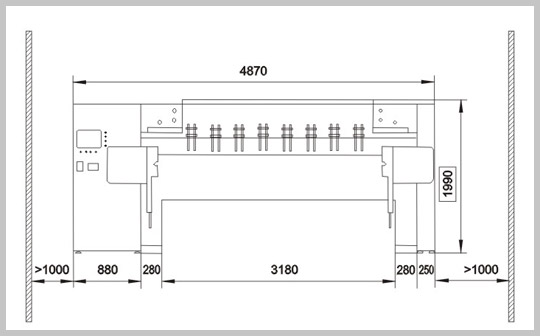

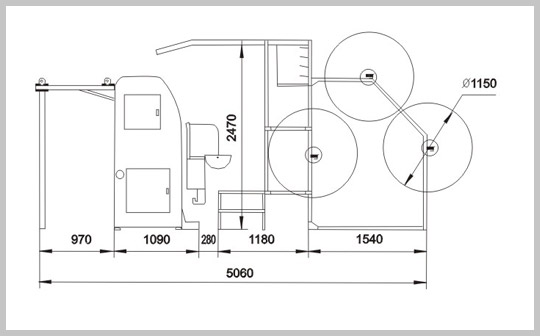

Installation Layout:
|
