Special Function:
1.Computer controlled panel cutting machine.
2.Designed to work with HC2000 , HC-94-3JE or HC-94-3JA Quilting Machine or on its own .
3.Machine is capable of cutting quilted panels,borders ,trimming sides or material rolling.
4.PLC control and touch screen for easy operation .
5.Encoder,Infrared setting of panel lengths for accurate panel cutting
6.Air Sharpening device to maintain cutting blades ,Air material pressing system and Air material pulling system to press and pull material automatically..
7.Reliable border feed and cutting mechanism.
8.Auto Working Table and width adjustable design for precise length .
9.Stable ,vibration free operation with low noise and high efficiency.
Technical Specification:
| Frame size (L×W×H) |
3750×2500×2100mm |
| Weight |
1500kg |
| Length of board |
2000mm |
| Thickness |
3-80 mm |
| Width |
100-2500 mm |
| Speed |
7000 mm/min |
| Power |
3KW |
| Power supply |
380V/50Hz, 220V /60Hz |
| Air pressure |
0.4-0.8 Mpa |
Applications:
Mattress panel, pads, bedspreads, bedding, comforters and so on.
Products:
 |
 |
 |

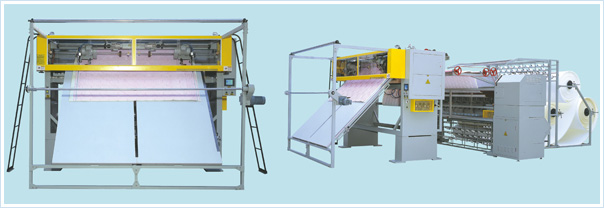

| Panel cutting machine |
Panels Cut |
Borders Cut |

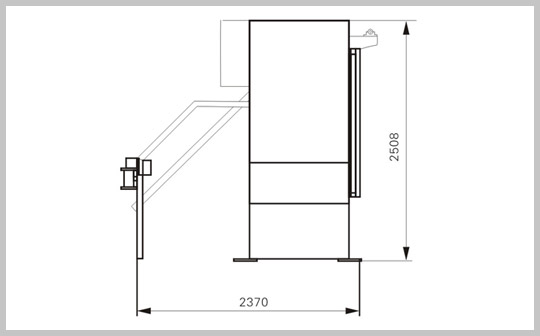

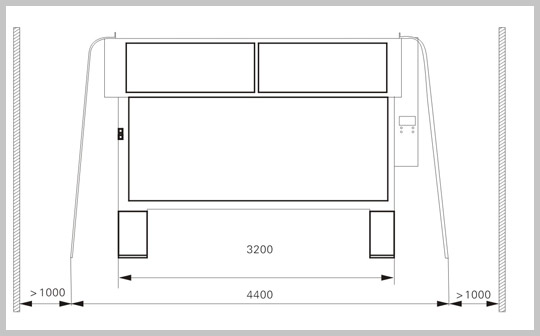

Installation Layout:
|
